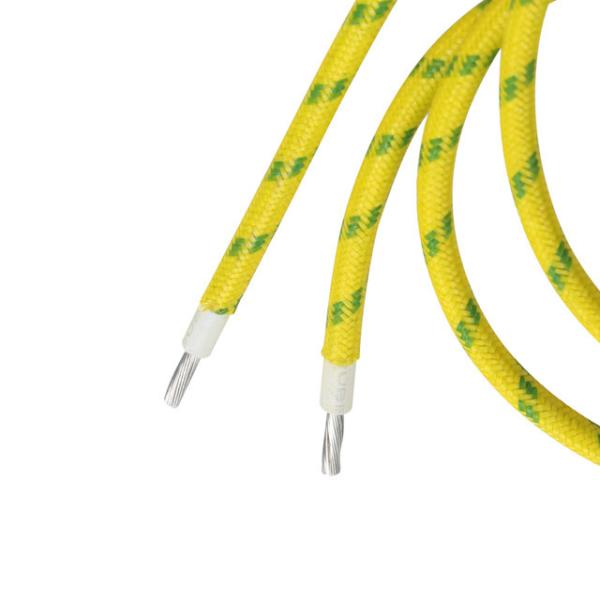

Single Core Heat Resistant Silicone Insulated Cables

Brand Name : CN CABLE

Model Number : H05SJ-K H05SS-K

Certification : IEC

Place of Origin : Henan

MOQ : 200meters

Payment Terms : L/C, T/T

Delivery Time : 20 days

Packaging Details : Wooden drum. iron-wooden drum

Conductor : Flexible bare copper class 5 according to UNE EN 60228

Insulation : Silicone type EI 2 according to UNE EN 50363-1

Reinforcement : Fiberglass braid

Impregnation : Acrylic varnish

Color : Multi colors are available

Contact Now

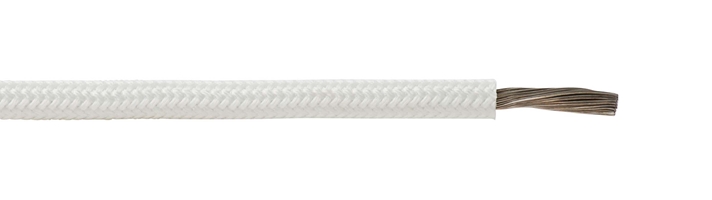

H05SJ-K H05SS-K 300/500 V Single Core Heat-resistant Silicone-insulated Cables with Mechanical Protection



APPLICATION



These cables are suitable for luminaire wiring and can be processed reliably and without problems. They are used at high ambient temperatures and for ambient air temperature between -60° C and +180° C in dry locations.
They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.









APPLICABLE STANDARD



EN 50525-2-41







CABLE CONSTRUCTION



Conductor: Flexible bare copper class 5 according to UNE EN 60228
Insulation: Silicone type EI 2 according to UNE EN 50363-1
Reinforcement: Fiberglass braid
Impregnation: White acrylic varnish







TECHNICAL DATA



Operating voltage: 300 / 500 V
Test voltage: 2.000 V
Operating temperature: from -60 to 180 ºC (up to 230 ºC)







Packing Material: Coil, Box, Pallet, Drum





Section (sq.mm.) Outer aprox. (mm.) Weight (kg/km) Resistance at 20ºC (Ω/km)
1×0,5 2,6 8,6 39,0
1×0,75 2,9 10,3 26,0
1×1 3,0 13,2 19,5
1×1,5 3,5 19,0 13,3
1×2,5 4,1 31,2 7,98
1×4 4,9 44,5 4,95
1×6 5,9 61,8 3,30
1×10 7,6 108,3 1,91
1×16 9,2 167,1 1,21
1×25 11,3 216,0 0,78
1×35 12,6 367,8 0,554
1×50 15,1 510,0 0,386
1×70 17,2 775,4 0,272
